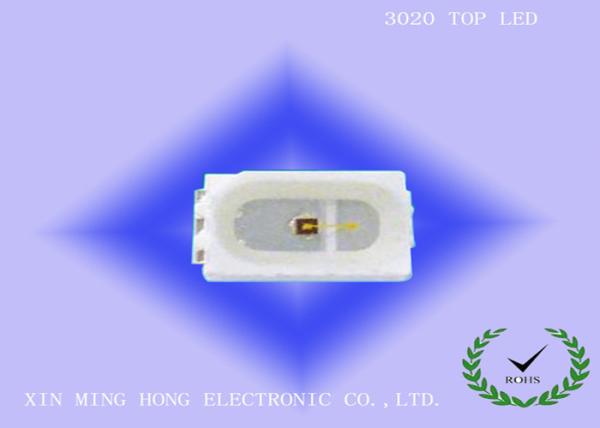

3020 GREEN TOP LED

Features:

• (1)suitable for all SMT asembly methods.
• (2)compatible with infrared and vapor phase reflow solder process.
• (3)compatible with automatic placement equipment.
• (4)This product doesn't contain restriction substance,comply ROHS standard.

Applications:

• Turn singals
• Status indicators:comsumer & industrial
• Backlighting:LCDS,Key pads adverstising
• General use

Package Dimensions:

Electrical and optical characteristics(Ta=25Electrical and optical characteristics(Ta=25C)Electrical and optical characteristics(Ta=25C)Electrical and optical characteristics(Ta=25C)C)

Soldering

• Reflow soldering

Preheating:140°C-160°C±5°C,within 2 minutes.

Operation heating:235°C(MAX.) within 10 seconds.

Gradual Cooling(Avoid quenching)

Preheating:140°C-160°C±5°C,within 2 minutes.

Operation heating:235°C(MAX.) within 10 seconds.

Gradual Cooling(Avoid quenching)

• Dip soldering(wave soldering)

Preheating:120°C-150°C, within 120-180 sec

Operation heating:245°C±5°C within 5 sec.260°C(MAX)

Gradual cooling(Avoid quenching)
